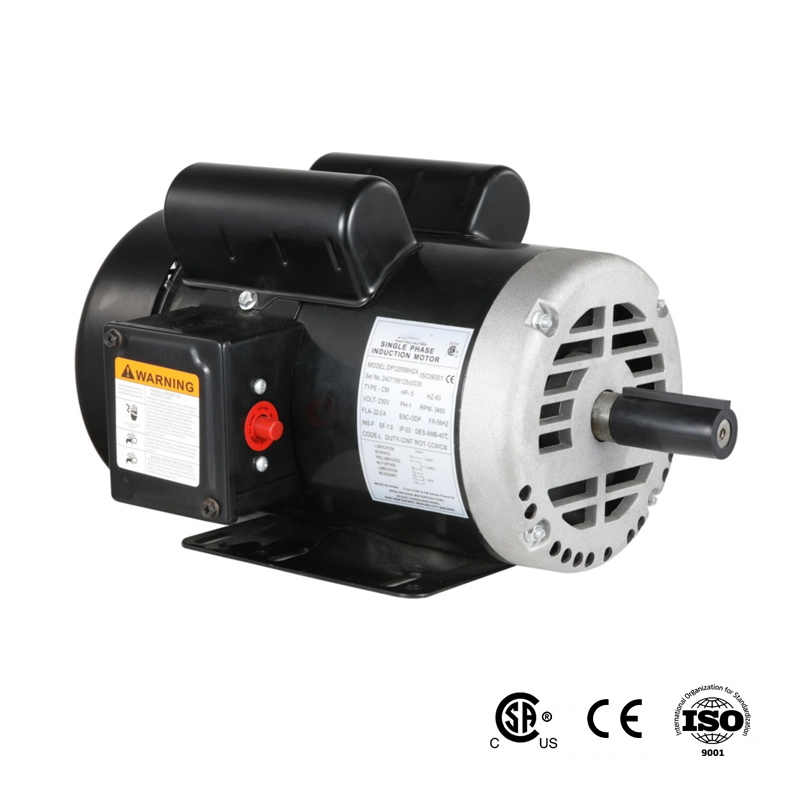

(Power : 3HP-5HP) Steel Shell Housing Single Phase ODP Series

Standard Features: (Power : 3HP-5HP) Steel Shell Housing Single Phase ODP Series

Inquiry Message

Tel： 913 888 4488
Fax：913 904 0166
E-mail: Jenkin@usapowertech.com
E-mail: michelle@usapowertech.com

Standard Features:

-----------------------------------------------------------------------

Power : 3HP ~ 5HP
Speed: 3600/1800 RPM
Rated Speed: 3450/1725RPM
Pole : 2/4 Pole
Frame Size: 56HZ (143/5T)
Volt: 115/230V
Rotation : CCW/CW
Capacitor : Start & Run Capacitor
Service Factor: 1.0 on 60HZ
Protection : IP23
Housing: Steel Shell
Enclosure: ODP
Class F Insulation
Continuous Duty Cycle
Overload Protection with Manual Reset
