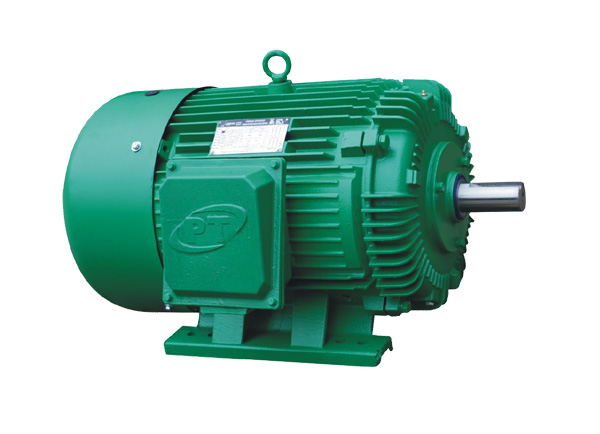

NEMA Premium Effciency,
Inverter Duty 20:1VT,10:1 CT
Three Phase,TEFC
APPLICATIONS
Compressors,Conveyors,Blowers,Fans,
Pumps,metrial Handling or any other Industrial
Machinery,any application that requires TEFC
Enclosures and most ODP Enclosures
FEATURES
Cast-lron Construction,208-230/460V 60Hz 1.15SF,
50hZ 1.0 SF HP Derated,Class F insulation,VPI.F1-F2,
Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
CSA,CE Certification, ISO 9001
| HP |
RPM |
Frame Size |
Voltage |
Model NO |
List Price |
NOM EFF |
FL Amps@230/460V |
Approx Wt.(1bs) |
“C”DIM |
Foot Notes |
| 1 |
1800 |
143T |
208-230/460 |
E401 |
﹩365 |
85.5 |
1.7 |
55 |
12.79 |
? |
| 1200 |
145T |
208-230/460 |
E601 |
﹩486 |
82.5 |
1.8 |
55 |
13.77 |
? |
| 1.5 |
3600 |
143T |
208-230/460 |
E202 |
﹩416 |
84.0 |
1.2 |
50 |
12.79 |
? |
| 1800 |
145T |
208-230/460 |
E412 |
﹩446 |
86.5 |
2.5 |
55 |
12.79 |
? |
| 1200 |
182TS |
208-230/460 |
E612 |
﹩522 |
87.5 |
2.6 |
84 |
16.41 |
? |
| 2 |
3600 |
145T |
208-230/460 |
E202 |
﹩447 |
85.5 |
2.7 |
50 |
13.77 |
? |
| 1800 |
145T |
208-230/460 |
E402 |
﹩463 |
86.5 |
3.2 |
60 |
13.77 |
? |
| 1200 |
184T |
208-230/460 |
E602 |
﹩614 |
88.5 |
3.5 |
101 |
17.12 |
? |
| 3 |
3600 |
145T |
208-230/460 |
E2035 |
﹩612 |
86.5 |
3.9 |
92 |
13.77 |
? |
| 3600 |
182T |
208-230/460 |
E203 |
﹩550 |
86.5 |
4.0 |
90 |
16.14 |
? |
| 1800 |
182T |
208-230/460 |
E403 |
﹩543 |
89.5 |
4.5 |
146 |
16.14 |
? |
| 1200 |
213T |
208-230/460 |
E603 |
﹩829 |
89.5 |
6.3 |
101 |
19.76 |
? |
| 5 |
3600 |
184T |
208-230/460 |
E205 |
﹩681 |
88.5 |
6.7 |
110 |
17.12 |
? |
| 1800 |
184T |
208-230/460 |
E405 |
﹩639 |
89.5 |
7.3 |
150 |
17.12 |
? |
| 1200 |
215T |
208-230/460 |
E605 |
﹩1,089 |
89.5 |
9.2 |
148 |
21.25 |
? |
| 7.5 |
3600 |
184T |
208-230/460 |
E2724 |
﹩1,053 |
89.5 |
9.4 |
150 |
17.12 |
? |
| 3600 |
213T |
208-230/460 |
E272 |
﹩947 |
89.5 |
10.7 |
240 |
19.76 |
? |
| 1800 |
213T |
208-230/460 |
E472 |
﹩923 |
91.7 |
12.2 |
181 |
19.76 |
? |
| 1200 |
254T |
208-230/460 |
E672 |
﹩1,498 |
91.0 |
13.1 |
179 |
23.46 |
? |
| 10 |
3600 |
215T |
208-230/460 |
E210 |
﹩1,067 |
90.2 |
14.2 |
280 |
21.25 |
? |
| 1800 |
215T |
208-230/460 |
E410 |
﹩1,109 |
91.7 |
18.2 |
260 |
21.25 |
? |
| 1200 |
256T |
208-230/460 |
E610 |
﹩1,898 |
91.0 |
18.2 |
290 |
25.2 |
? |
| 15 |
3600 |
254T |
208-230/460 |
E215 |
﹩1.567 |
91.0 |
24.2 |
260 |
23.46 |
? |
| 1800 |
254T |
208-230/460 |
E415 |
﹩1.554 |
92.4 |
24.0 |
290 |
23.46 |
? |
| 1200 |
284T |
208-230/460 |
E615 |
﹩2.542 |
91.7 |
26.0 |
350 |
26.85 |
? |
| 20 |
3600 |
256T |
208-230/460 |
E220 |
﹩1.916 |
91.0 |
29.3 |
331 |
25.2 |
? |
| 1800 |
256T |
208-230/460 |
E420 |
﹩1.848 |
93.0 |
29.8 |
326 |
25.2 |
? |
| 1200 |
286T |
208-230/460 |
E620 |
﹩3.021 |
91.7 |
32.0 |
396 |
28.35 |
? |
| 25 |
3600 |
284TS |
208-230/460 |
E225 |
﹩2,457 |
91.7 |
29.3 |
381 |
25.48 |
? |
| 1800 |
284T |
208-230/460 |
E425 |
﹩2,276 |
93.6 |
29.8 |
400 |
26.85 |
? |
| 1200 |
324T |
208-230/460 |
E624 |
﹩3,428 |
93.0 |
32.0 |
504 |
30.39 |
? |
|
