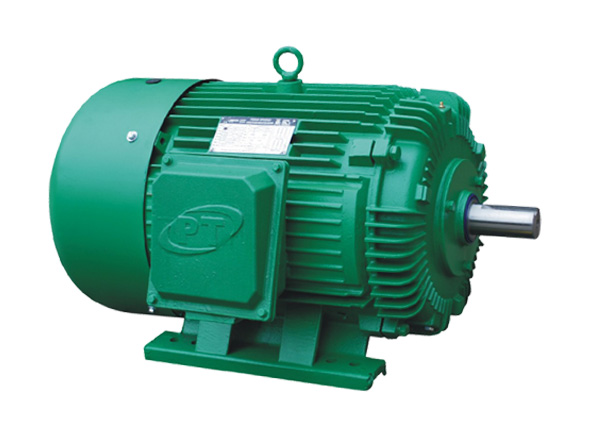

NEMA Premium Effciency,
Inverter Duty 20:1VT,10:1 CT
Three Phase,TEFC
APPLICATIONS
Compressors,Conveyors,Blowers,Fans,
Pumps,metrial Handling or any other Industrial
Machinery,any application that requires TEFC
Enclosures and most ODP Enclosures
FEATURES
Cast-lron Construction,208-230/460V 60Hz 1.15SF,
50hZ 1.0 SF HP Derated,Class F insulation,VPI.F1-F2,
Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
CSA,CE Certification, ISO 9001
| HP |
RPM |
Frame Size |
Voltage |
Model NO |
List Price |
NOM EFF |
FL Amps@230/460V |
Approx Wt.(1bs) |
“C”DIM |
Foot Notes |
| 30 |
3600 |
286TS |
208-230/460 |
E230 |
﹩2.639 |
91.7 |
35.2 |
523 |
26.98 |
? |
| 1800 |
286T |
208-230/460 |
E430 |
﹩2.653 |
93.6 |
35.7 |
451 |
28.35 |
? |
| 1200 |
326T |
208-230/460 |
E630 |
﹩4.113 |
93.0 |
39.0 |
572 |
31.88 |
? |
| 40 |
3600 |
324TS |
208-230/460 |
E240 |
﹩3.378 |
92.4 |
46.6 |
533 |
28.99 |
? |
| 1800 |
324T |
208-230/460 |
EP440 |
﹩3.551 |
94.1 |
47.4 |
589 |
30.39 |
? |
| 1200 |
364T |
208-230/460 |
E640 |
﹩5.095 |
94.1 |
50.5 |
711 |
33.07 |
? |
| 50 |
3600 |
326TS |
208-230/460 |
E250 |
﹩4.274 |
93.0 |
57.2 |
620 |
30.38 |
? |
| 1800 |
326T |
208-230/460 |
E450 |
﹩4.262 |
94.5 |
58.3 |
640 |
31.88 |
? |
| 1200 |
365T |
208-230/460 |
E650 |
﹩6.387 |
94.1 |
61.0 |
750 |
34.06 |
? |
| 60 |
3600 |
364TS |
208-230/460 |
E260 |
﹩5.991 |
93.6 |
68.3 |
675 |
30.94 |
? |
| 1800 |
364T |
208-230/460 |
E460 |
﹩5.725 |
95.0 |
70.0 |
780 |
33.07 |
? |
| 1200 |
404T |
208-230/460 |
E660 |
﹩7.036 |
94.5 |
72.5 |
1033 |
39.37 |
? |
| 75 |
3600 |
365TS |
208-230/460 |
E275 |
﹩7.082 |
93.6 |
85.4 |
857 |
31.93 |
? |
| 1800 |
365T |
208-230/460 |
E457 |
﹩6.507 |
95.4 |
86.7 |
803 |
34.06 |
? |
| 1200 |
405T |
208-230/460 |
E675 |
﹩7.837 |
94.5 |
88.0 |
1183 |
39.37 |
? |
| 100 |
3600 |
405TS |
208-230/460 |
2100 |
﹩8.506 |
94.1 |
110.7 |
1121 |
36.37 |
? |
| 1800 |
405T |
208-230/460 |
E4100 |
﹩7.514 |
95.4 |
114.3 |
1300 |
39.37 |
? |
| 1200 |
444T |
208-230/460 |
E4100 |
﹩11.339 |
95.0 |
115.0 |
1378 |
43.7 |
? |
| 125 |
3600 |
444TS |
460 |
E2125 |
﹩10.896 |
95.0 |
137.0 |
1378 |
39.95 |
? |
| 1800 |
444T |
460 |
P4125 |
﹩11.408 |
95.4 |
142.8 |
1433 |
43.7 |
? |
| 1200 |
445T |
460 |
P6125 |
﹩13.952 |
85.0 |
143.0 |
1473 |
45.7 |
? |
| 150 |
3600 |
445TS |
460 |
E2150 |
﹩13.056 |
95.0 |
164.5 |
1473 |
41.95 |
? |
| 1800 |
445T |
460 |
E4150 |
﹩12.103 |
95.8 |
170.7 |
1575 |
45.7 |
? |
| 1200 |
447T |
460 |
E6150 |
﹩16.718 |
95.8 |
170.0 |
1798 |
49.21 |
? |
| 200 |
3600 |
447TS |
460 |
E2200 |
﹩16.993 |
95.4 |
218.4 |
1858 |
45.71 |
? |
| 1800 |
447T |
460 |
E4200 |
﹩15.541 |
96.2 |
226.6 |
1858 |
49.21 |
? |
| 1200 |
449T |
460 |
E6200 |
﹩19.739 |
95.8 |
227.0 |
2508 |
53.24 |
? |
| 250 |
3600 |
449TS |
460 |
E2250 |
﹩22.500 |
95.8 |
261 |
2300 |
49.3 |
? |
| 1800 |
449T |
460 |
E4250 |
﹩21.253 |
96.2 |
264.2 |
2300 |
52.9 |
? |
| 1200 |
449T |
460 |
E6250 |
﹩26.625 |
95.8 |
271.3 |
2508 |
71.9 |
? |
| 300 |
3600 |
449TS |
460 |
E2300 |
﹩28.500 |
95.8 |
310.3 |
2700 |
49.3 |
? |
| 1800 |
449T |
460 |
E4300 |
﹩26.944 |
96.2 |
317.1 |
4750 |
52.9 |
? |
| 1200 |
449T |
460 |
E6300 |
﹩31.591 |
95.8 |
326.2 |
4700 |
71.9 |
? |
|
