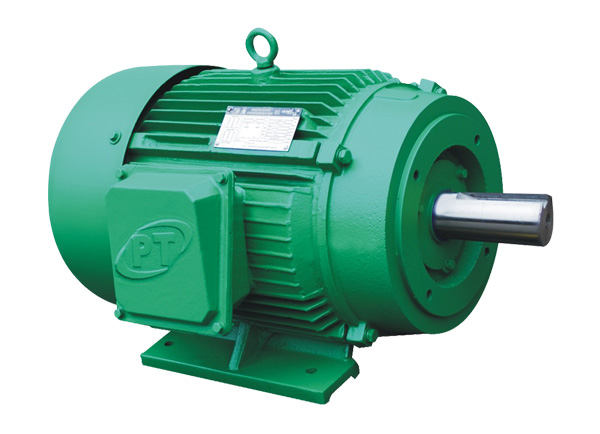

NEMA Premium Effciency,
Inverter Duty 20:1VT,10:1 CT
Three Phase,TEFC
APPLICATIONS
Compressors,Conveyors,Blowers,Fans,
Pumps,metrial Handling or any other Industrial
Machinery,any application that requires TEFC
Enclosures and most ODP Enclosures
FEATURES
Cast-lron Construction,208-230/460V 60Hz 1.15SF,
50hZ 1.0 SF HP Derated,Class F insulation,VPI.F1-F2,
Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
CSA,CE Certification, ISO 9001
| HP |
RPM |
Frame Size |
Voltage |
Model NO |
List Price |
NOM EFF |
FL Amps@230/460V |
Approx Wt.(1bs) |
“C”DIM |
Foot Notes |
| 1 |
1800 |
143TC |
208-230/460 |
E401C |
﹩419.75 |
85.5 |
1.7 |
55 |
12.79 |
? |
| 1200 |
145TC |
208-230/460 |
E601C |
﹩558.90 |
82.5 |
1.8 |
55 |
13.77 |
? |
| 1.5 |
3600 |
143TC |
208-230/460 |
E202C |
﹩478.40 |
84.0 |
1.2 |
50 |
12.79 |
? |
| 1800 |
145TC |
208-230/460 |
E412C |
﹩512.90 |
86.5 |
2.5 |
55 |
12.79 |
? |
| 1200 |
182TSC |
208-230/460 |
E612C |
﹩600.30 |
87.5 |
2.6 |
84 |
16.41 |
? |
| 2 |
3600 |
145TC |
208-230/460 |
E202C |
﹩514.05 |
85.5 |
2.7 |
50 |
13.77 |
? |
| 1800 |
145TC |
208-230/460 |
E402C |
﹩532.45 |
86.5 |
3.2 |
60 |
13.77 |
? |
| 1200 |
184TC |
208-230/460 |
E602C |
﹩706.10 |
88.5 |
3.5 |
101 |
17.12 |
? |
| 3 |
3600 |
182TC |
208-230/460 |
E203C |
﹩632.50 |
86.5 |
4.0 |
90 |
16.14 |
? |
| 1800 |
182TC |
208-230/460 |
E403C |
﹩624.45 |
89.5 |
4.5 |
146 |
16.14 |
? |
| 1200 |
213TC |
208-230/460 |
E603C |
﹩953.35 |
89.5 |
6.3 |
101 |
19.76 |
? |
| 5 |
3600 |
184TC |
208-230/460 |
E205C |
﹩783.15 |
88.5 |
6.7 |
110 |
17.12 |
? |
| 1800 |
184TC |
208-230/460 |
E405C |
﹩734.85 |
89.5 |
7.3 |
150 |
17.12 |
? |
| 1200 |
215TC |
208-230/460 |
E605C |
﹩1,252.35 |
89.5 |
9.2 |
148 |
21.25 |
? |
| 7.5 |
3600 |
213TC |
208-230/460 |
E272C |
﹩1,089.05 |
89.5 |
10.7 |
240 |
19.76 |
? |
| 1800 |
213TC |
208-230/460 |
E472C |
﹩1,061.45 |
91.7 |
12.2 |
181 |
19.76 |
? |
| 1200 |
254TC |
208-230/460 |
E672C |
﹩1,722.70 |
91.0 |
13.1 |
179 |
23.46 |
? |
| 10 |
3600 |
215TC |
208-230/460 |
E210C |
﹩1,227.05 |
90.2 |
14.2 |
280 |
21.25 |
? |
| 1800 |
215TC |
208-230/460 |
E410C |
﹩1,275.35 |
91.7 |
18.2 |
260 |
21.25 |
? |
| 1200 |
256TC |
208-230/460 |
E610C |
﹩2,182.70 |
91.0 |
18.2 |
290 |
25.2 |
? |
| 15 |
3600 |
254TC |
208-230/460 |
E215C |
﹩1.802.05 |
91.0 |
24.2 |
260 |
23.46 |
? |
| 1800 |
254TC |
208-230/460 |
E415C |
﹩1.787.10 |
92.4 |
24.0 |
290 |
23.46 |
? |
| 1200 |
284TC |
208-230/460 |
E615C |
﹩2.923.30 |
91.7 |
26.0 |
350 |
26.85 |
? |
| 20 |
3600 |
256TC |
208-230/460 |
E220C |
﹩2.203.40 |
91.0 |
29.3 |
331 |
25.2 |
? |
| 1800 |
256TC |
208-230/460 |
E420C |
﹩2.125.20 |
93.0 |
29.8 |
326 |
25.2 |
? |
| 1200 |
286TC |
208-230/460 |
E620C |
﹩3.474.75 |
91.7 |
32.0 |
396 |
28.35 |
? |
| 25 |
3600 |
284TSC |
208-230/460 |
E225C |
﹩2,825.55 |
91.7 |
29.3 |
381 |
25.48 |
? |
| 1800 |
284TC |
208-230/460 |
E425C |
﹩2,617.40 |
93.6 |
29.8 |
400 |
26.85 |
? |
| 1200 |
324TC |
208-230/460 |
E624C |
﹩3,942.20 |
93.0 |
32.0 |
504 |
30.39 |
? |
|
