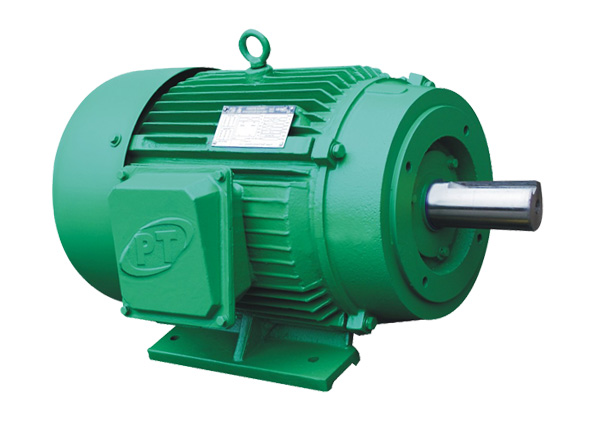

NEMA Premium Effciency,
Inverter Duty 20:1VT,10:1 CT
Three Phase,TEFC
APPLICATIONS
Compressors,Conveyors,Blowers,Fans,
Pumps,metrial Handling or any other Industrial
Machinery,any application that requires TEFC
Enclosures and most ODP Enclosures
FEATURES
Cast-lron Construction,208-230/460V 60Hz 1.15SF,
50hZ 1.0 SF HP Derated,Class F insulation,VPI.F1-F2,
Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
CSA,CE Certification, ISO 9001
| HP |
RPM |
Frame Size |
Voltage |
Model NO |
List Price |
NOM EFF |
FL Amps@230/460V |
Approx Wt.(1bs) |
“C”DIM |
Foot Notes |
| 30 |
3600 |
286TSC |
208-230/460 |
E230C |
﹩3.034.85 |
91.7 |
35.2 |
523 |
26.98 |
? |
| 1800 |
286TC |
208-230/460 |
E430C |
﹩3,050.95 |
93.6 |
35.7 |
451 |
28.35 |
? |
| 1200 |
326TC |
208-230/460 |
E630C |
﹩4.729.95 |
93.0 |
39.0 |
572 |
31.88 |
? |
| 40 |
3600 |
324TSC |
208-230/460 |
E240C |
﹩3.884.70 |
92.4 |
46.6 |
533 |
28.99 |
? |
| 1800 |
324TC |
208-230/460 |
EP440C |
﹩4.083.65 |
94.1 |
47.4 |
589 |
30.39 |
? |
| 1200 |
364TC |
208-230/460 |
E640C |
﹩5.859.20 |
94.1 |
50.5 |
711 |
33.07 |
? |
| 50 |
3600 |
326TSC |
208-230/460 |
E250C |
﹩4.915.10 |
93.0 |
57.2 |
620 |
30.38 |
? |
| 1800 |
326TC |
208-230/460 |
E450C |
﹩4.901.30 |
94.5 |
58.3 |
640 |
31.88 |
? |
| 1200 |
365TC |
208-230/460 |
E650C |
﹩7.345.05 |
94.1 |
61.0 |
750 |
34.06 |
? |
| 60 |
3600 |
364TSC |
208-230/460 |
E260C |
﹩6.889.65 |
93.6 |
68.3 |
675 |
30.94 |
? |
| 1800 |
364TC |
208-230/460 |
E460C |
﹩6.583.75 |
95.0 |
70.0 |
780 |
33.07 |
? |
| 1200 |
404TC |
208-230/460 |
E660C |
﹩8.091.41 |
94.5 |
72.5 |
1033 |
39.37 |
? |
| 75 |
3600 |
365TSC |
208-230/460 |
E275C |
﹩8.144.30 |
93.6 |
85.4 |
857 |
31.93 |
? |
| 1800 |
365TC |
208-230/460 |
E457C |
﹩7.483.05 |
95.4 |
86.7 |
803 |
34.06 |
? |
| 1200 |
405TC |
208-230/460 |
E675C |
﹩9.012.55 |
94.5 |
88.0 |
1183 |
39.37 |
? |
| 100 |
3600 |
405TSC |
208-230/460 |
2100C |
﹩9.781.90 |
94.1 |
110.7 |
1121 |
36.37 |
? |
| 1800 |
405TC |
208-230/460 |
E4100C |
﹩8.641.10 |
95.4 |
114.3 |
1300 |
39.37 |
? |
| 1200 |
444TC |
208-230/460 |
E4100C |
﹩13.039.85 |
95.0 |
115.0 |
1378 |
43.7 |
? |
| 125 |
3600 |
444TSC |
460 |
E2125C |
﹩12,530.40 |
95.0 |
137.0 |
1378 |
39.95 |
? |
| 1800 |
444TC |
460 |
P4125C |
﹩13,119.20 |
95.4 |
142.8 |
1433 |
43.7 |
? |
| 1200 |
445TC |
460 |
P6125C |
﹩16.044.80 |
85.0 |
143.0 |
1473 |
45.7 |
? |
| 150 |
3600 |
445TSC |
460 |
E2150C |
﹩15.014.40 |
95.0 |
164.5 |
1473 |
41.95 |
? |
| 1800 |
445TC |
460 |
E4150C |
﹩13.918.45 |
95.8 |
170.7 |
1575 |
45.7 |
? |
| 1200 |
447TC |
460 |
E6150C |
﹩19.225.70 |
95.8 |
170.0 |
1798 |
49.21 |
? |
| 200 |
3600 |
447TSC |
460 |
E2200C |
﹩19.541.95 |
95.4 |
218.4 |
1858 |
45.71 |
? |
| 1800 |
447TC |
460 |
E4200C |
﹩17.872.15 |
96.2 |
226.6 |
1858 |
49.21 |
? |
| 1200 |
449TC |
460 |
E6200C |
﹩22.699.85 |
95.8 |
227.0 |
2508 |
53.24 |
? |
| 250 |
3600 |
449TSC |
460 |
E2250C |
﹩25.875.00 |
95.8 |
261 |
2300 |
49.3 |
? |
| 1800 |
449TC |
460 |
E4250C |
﹩24.441.09 |
96.2 |
264.2 |
2300 |
52.9 |
? |
| 1200 |
449TC |
460 |
E6250C |
﹩30,618.75 |
95.8 |
271.3 |
2508 |
71.9 |
? |
| 300 |
3600 |
449TSC |
460 |
E2300C |
﹩32.775.00 |
95.8 |
310.3 |
2700 |
49.3 |
? |
| 1800 |
449TC |
460 |
E4300C |
﹩30.985.31 |
96.2 |
317.1 |
4750 |
52.9 |
? |
| 1200 |
449TC |
460 |
E6300C |
﹩36.329.22 |
95.8 |
326.2 |
4700 |
71.9 |
? |
|
