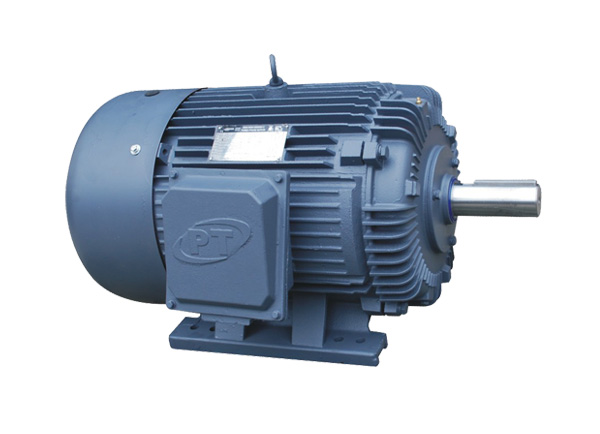

1-15HP Nema C Design Epact Motor

Special Purpose
TEFC, Three Phase, Design C,
EISA Compliant

Applications:
Any application that requires high torque design"C"
Characteristics, such as Crushers, Shakers etc.

Features:
Ball Bearings, 1.15 Service Factor, 230/460v and 460v
(1.0sf @208v), Class F Insulation, Cast-Iron
Rated 60/50 HZ, 200/400 @ next lower horsepower
CSA, CE Certification, ISO 9001

HP RPM Frame Voltage Model Number List Price NOM EFF FL Amps@460V Approx Wt.(Lbs) “C”DIM Foot Notes
1 1800 143T 208-230/460 P401 ﹩317.60 82.5 1.6 56 12.79 a
1200 145T 208-230/460 P601 ﹩393.00 80.0 1.6 56 13.77 a
900 182T 208-230/460 P801 ﹩511.00 80.0       a
1.5 3600 145T 208-230/460 E212 ﹩385.00 84.0 2.2 48 12.79 b,e
1800 145T 208-230/460 P412 ﹩350.00 84.0 2.2 58 13.77 a
1200 182T 208-230/460 P612 ﹩409.00 85.5 2.3 101 16.14 a
900 184T 208-230/460 P812 ﹩636.00 77.0 2.3 105 16.14 a
2 3600 145T 208-230/460 E202 ﹩417.00 85.5 2.7 55.5 13.77 a,e
1800 145T 208-230/460 P402 ﹩370.00 84.0 3.0 59 13.77 a
1200 184T 208-230/460 P602 ﹩542.00 86.5 2.9 105 17.12 a
900 213T 208-230/460 P802 ﹩899.00 82.5       a
3 3600 182T 208-230/460 E203 ﹩530.00 86.5 3.9 79 16.14 b,e
1800 182T 208-230/460 P403 ﹩472.00 87.5 4.6 88 16.14 a
1200 213T 208-230/460 P603 ﹩809.00 87.5 4.3 145 19.76 a
900 215T 208-230/460 P803 ﹩1,258.00 84.0       a
5 3600 184T 208-230/460 E205 ﹩667.00 88.5 6.3 95 17.12 b,e
1800 184T 208-230/460 P405 ﹩528.00 87.5 7.7 110.5 17.12 a
1200 215T 208-230/460 P605 ﹩932.00 87.5 7.2 150 21.25 a
900 254T 208-230/460 P805 ﹩1,508.00 85.5       a
7.5 3600 231T 208-230/460 E272 ﹩902.00 89.5 9.2 176 19.76 b,e
1800 231T 208-230/460 P472 ﹩731.00 89.5 10.1 153 19.76 a
1200 254T 208-230/460 P672 ﹩1,195.00 89.5 13.8 226 23.46 a
900 256T 208-230/460 P872 ﹩1,661.00 85.5       a
10 3600 215T 208-230/460 E210 ﹩1,045.00 90.2 12.2 180 21.25 b,e
1800 215T 208-230/460 P410 ﹩879.00 89.5 13.4 175 21.25 a
1200 256T 208-230/460 P610 ﹩1,623.00 89.5 13.8 280 25.2 a
900 284T 208-230/460 P810 ﹩2,403.00 88.5       a
15 3600 254T 208-230/460 E215 ﹩1,477.00 90.1 18.2 276 23.46 b,e
1800 254T 208-230/460 P415 ﹩1,217.00 90.1 18.8 293 23.46 a
1200 284T 208-230/460 P615 ﹩2,038.00 90.2 20.5 392 26.85 a
900 286T 208-230/460 P815 ﹩3,110.00 88.5       a

a Inverter Duty 4:1 Constant Torque
b Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
e Meets EISA for Premium Efficiency
