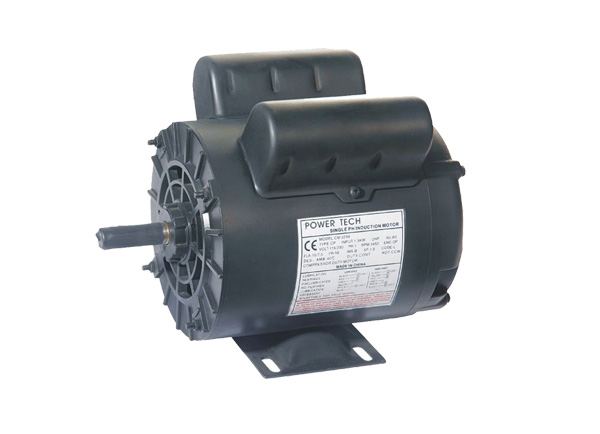

Air Compressor Motor

Single Phase ODP
Air Compressor OEM Special Replacement Motors

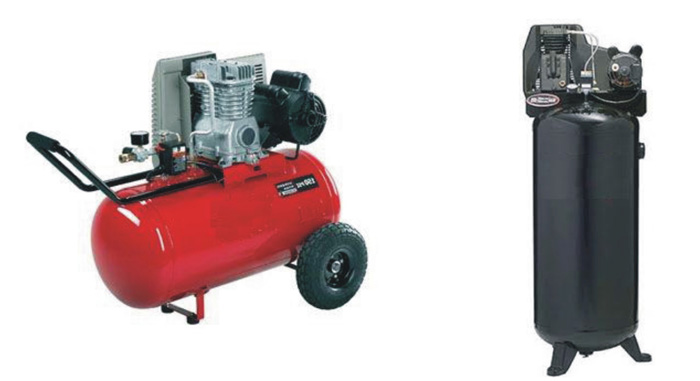

Applications:Designed for air compressor loads.
                     May be suitable for other applications
                     having similar loads

Features:Non-Reversible-Connected for CCW Facing
                Shaft End, 1.0 SF, CL B Insulation
               40 Ambient, Rigid Base

HP

RPM

Frame

Volts

Model NO

List Price

FL Amps@230/460V

Approx Wt.(lbs)

 2 SPL

  3600

  56

115/230

CMO2256

﹩310.11

15 / 7.5

32

 3 SPL

 3600

 56

115/230

CMO3256

﹩341.03

18 / 9

40

  5 SPL

 3600

 56

208-230

CMO5256

﹩401.86

16-15

45

 5

 3600

 56C

208-230

1205C-ODP

﹩448.29

22-21

50

5

 3600

 143/145

208-230

1205T-ODP

﹩449.17

22-21

53
