Definite Purpose,Single Phase
230/460V,TEFC,Rigid Base
Extra High Torque
Applications:

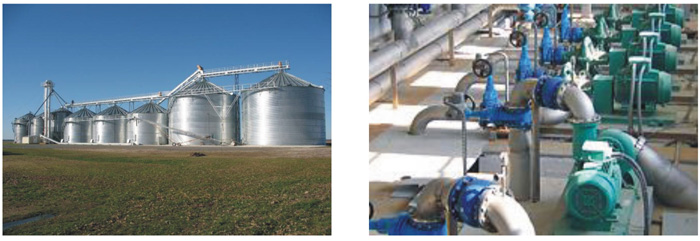

Pumps,gear boxes,or any other demanding
applidations that require high starting torque
Features:
Ball Bearings
1.15 Service factor(1.0 S.F.@208v)
Manual Overload Protector
Rigid Base "T"Frames

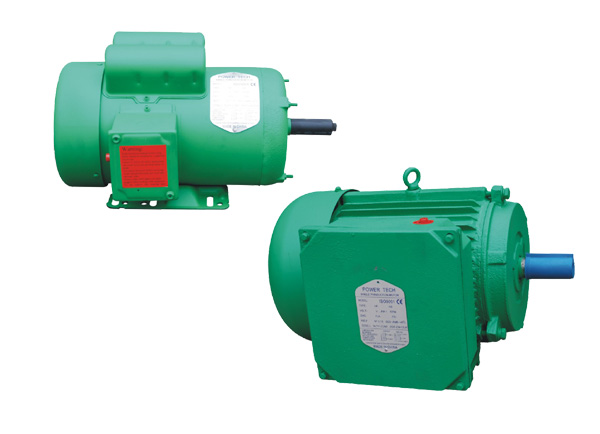

Single-Phase AC Motor
143T-215T Frames
IP:54
UNIVERSAL SERLES
| HP |
RPM |
Frame Size |
Volts |
Model NO |
List Price |
NOM EFF |
FL Amps@230/460V |
Approx Wt.(1bs) |
“C”DIM |
Foots Notes |
| 1 |
3600 |
143T |
115/230 |
S201 |
﹩400.58 |
69 |
5.6 |
35 |
12.8 |
? |
| 1800 |
143T |
230/460 |
S4014 |
﹩459.37 |
70 |
5 |
38 |
12.8 |
? |
| 1.5 |
3600 |
145T |
115/230 |
S212 |
﹩466.83 |
74 |
7.1 |
42 |
13.3 |
? |
| 1800 |
145T |
230/460 |
S4124 |
﹩519.52 |
75 |
7.6 |
45 |
13.3 |
? |
| 2 |
3600 |
145T |
115/230 |
S202 |
﹩487.49 |
76 |
9.1 |
44 |
13.3 |
? |
| 1800 |
145T |
230/460 |
S4024 |
﹩573.42 |
77 |
10 |
50 |
13.8 |
? |
| 3 |
3600 |
145T |
230 |
S230 |
﹩536.26 |
77 |
14 |
48 |
13.8 |
? |
| 1800 |
184T |
230/460 |
S4034 |
﹩851.08 |
77.5 |
15 |
108 |
16.2 |
? |
| 5 |
3600 |
184T |
230 |
S205 |
﹩925.69 |
78 |
22 |
104 |
16.2 |
? |
| 1800 |
184T |
230/460 |
S4054 |
﹩980.35 |
78 |
24 |
112 |
16.2 |
? |
| 7.5 |
3600 |
213T |
230 |
S272 |
﹩1,244.54 |
80 |
30 |
130 |
18.93 |
5 |
| 1800 |
215T |
230/460 |
S4724 |
﹩1,456.00 |
80 |
32 |
149 |
18.93 |
5 |
| 10 |
3600 |
215T |
230 |
S210 |
﹩1,434.18 |
82 |
38 |
145 |
20.51 |
5 |
| 1800 |
215T |
230/460 |
S4104 |
﹩1,723.75 |
82 |
40 |
161 |
20.51 |
5 |
5 No Manual Orerload Protector
