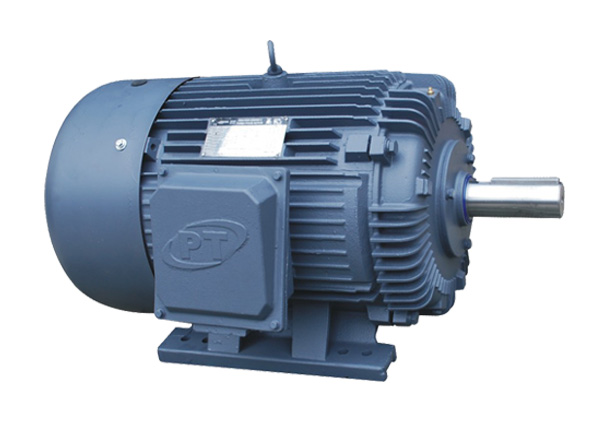

Special Purpose
TEFC,Three Phase,Design C,
EISA Compliant
Applications:
Any application that requires high torque design"C"
Characteristics,such as Crushers,Shakers etc.
Features:
Ball Bearings,1.15 Service Factor,230/460v and 460v
(1.0sf @208v),Class F Insulation,Cast-Iron
Rated 60/50 HZ,200/400 @ next lower horsepower
CSA,CE Certification,ISO 9001
| HP |
RPM |
Frame |
Voltage |
Model Number |
List Price |
NOM EFF |
FL Amps@460V |
Approx Wt.(Lbs) |
“C”DIM |
Foot Notes |
| 20 |
3600 |
256TS |
208-230/460 |
E220 |
﹩1,862.00 |
91.0 |
24.2 |
298 |
25.2 |
b,e |
| 1800 |
256T |
208-230/460 |
P420 |
﹩1,453.00 |
91.0 |
24.5 |
325 |
25.2 |
a |
| 1200 |
286T |
208-230/460 |
P620 |
﹩2,542.00 |
90.2 |
26.6 |
385 |
28.35 |
a |
| 900 |
324T |
208-230/460 |
P820 |
﹩3,645.00 |
89.5 |
27.6 |
? |
? |
a |
| 25 |
3600 |
284TS |
208-230/460 |
E225 |
﹩2,305.00 |
91.7 |
29.4 |
350 |
25.48 |
b,e |
| 1800 |
284T |
208-230/460 |
P425 |
﹩1,894.00 |
92.4 |
30.8 |
423 |
26.85 |
a |
| 1200 |
324T |
208-230/460 |
P625 |
﹩2,891.00 |
91.7 |
32.7 |
531 |
30.39 |
a |
| 900 |
326T |
208-230/460 |
P825 |
﹩4,102.00 |
89.5 |
33.3 |
562 |
? |
a |
| 30 |
3600 |
286TS |
208-230/460 |
E230 |
﹩2,434.00 |
91.7 |
33.9 |
384 |
26.98 |
b,e |
| 1800 |
286T |
208-230/460 |
P430 |
﹩2,141.00 |
92.4 |
36.4 |
357 |
28.35 |
a |
| 1200 |
326T |
208-230/460 |
P630 |
﹩3,394.00 |
91.7 |
37.4 |
560 |
31.88 |
a |
| 900 |
364T |
208-230/460 |
P830 |
﹩4,915.00 |
91.0 |
38.9 |
694 |
? |
a |
| 40 |
3600 |
324TS |
208-230/460 |
E240 |
﹩3,135.00 |
92.4 |
45.7 |
560 |
28.89 |
b,e |
| 1800 |
324T |
208-230/460 |
P440 |
﹩2,749.00 |
93.0 |
48.5 |
592 |
30.39 |
a |
| 1200 |
364T |
208-230/460 |
P640 |
﹩4,218.00 |
93.0 |
49.1 |
790 |
33.07 |
a |
| 900 |
365T |
208-230/460 |
P840 |
﹩6,013.00 |
91.0 |
52.4 |
754 |
? |
a |
| 50 |
3600 |
326TS |
208-230/460 |
E250 |
﹩3,938.00 |
93.0 |
57.2 |
650 |
30.38 |
b,e |
| 1800 |
326T |
208-230/460 |
P450 |
﹩3,438.00 |
93.0 |
59.6 |
512 |
31.88 |
a |
| 1200 |
449T |
208-230/460 |
P650 |
﹩5,531.00 |
93.0 |
60.1 |
820 |
34.06 |
a |
| 900 |
404T |
208-230/460 |
P850 |
﹩7,204.00 |
91.7 |
65.0 |
1033 |
? |
a |
| 60 |
3600 |
364TS |
208-230/460 |
E260 |
﹩5,400.00 |
93.6 |
68.3 |
756 |
30.94 |
b,e |
| 1800 |
364T |
208-230/460 |
P460 |
﹩4,541.00 |
93.6 |
70.5 |
760 |
33.07 |
a |
| 1200 |
404T |
208-230/460 |
P660 |
﹩6,115.00 |
93.6 |
73.3 |
1030 |
39.37 |
a |
| 900 |
405T |
208-230/460 |
P860 |
﹩8,189.00 |
91.7 |
80.0 |
1183 |
? |
a |
a Inverter Duty 4:1 Constant Torque
b Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
e Meets EISA for Premium Efficiency
|
