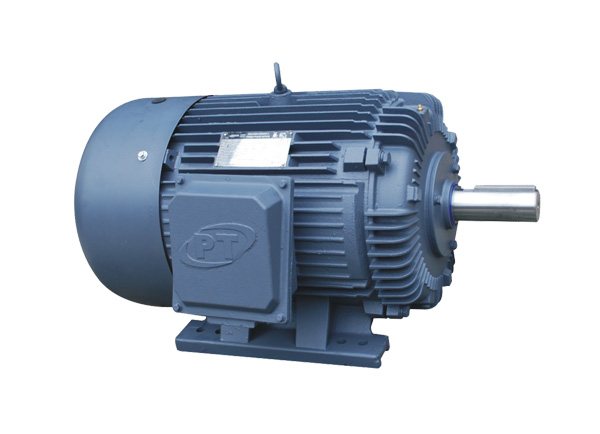

75-250HP Nema C Design Epact Motor

Special Purpose
TEFC, Three Phase, Design C,
EISA Compliant

Applications:
Any application that requires high torque design"C"
Characteristics, such as Crushers, Shakers etc.

Features:
Ball Bearings, 1.15 Service Factor, 230/460v and 460v
(1.0S.F @208v), Class F Insulation, Cast-Iron
Rated 60/50 Hz, 200/400 @ next lower horsepower
CSA, CE Certification, ISO 9001

HP RPM Frame Voltage Model Number List Price NOM EFF FL Amps@460V Approx Wt.(Lbs) “C”DIM Foot Notes
75 3600 365TS 208-230/460 E275 ﹩6,467.00 93.6 85.4 804 31.93 b,e
1800 365T 208-230/460 P475 ﹩5,251.00 94.3 87.5 830 34.06 a
1200 405T 208-230/460 P675 ﹩6,409.00 94.3 92.0 1180 39.37 a
900 444T 208-230/460 P875 ﹩11,960.00 93.0 95.0 1378   a
100 3600 405TS 208-230/460 E2100 ﹩8,316.00 94.2 111 1007 36.37 b,e
1800 405T 208-230/460 P4100 ﹩6,673.00 94.5 115 1150 39.37 a
1200 444T 208-230/460 P4100 ﹩9,274.00 94.2 111 1395 43.7 a
900 445T 208-230/460 P8100 ﹩12,884.00 93.0 131 1473   a
125 3600 444TS 460 E2125 ﹩10,171.00 95.0 137 1366 39.95 b,e
1800 444T 208-230/460 P4125 ﹩8,705.00 94.8 144 1305 43.7 a
1200 445T 208-230/460 P6125 ﹩10,805.00 94.2 138 1420 45.7 a
900 445/7T 208-230/460 P8125 ﹩16,554.00 93.6 154 1798   a
150 3600 445TS 460 E2150 ﹩11,703.00 95.0 165 1496 41.95 b,e
1800 445T 208-230/460 P4150 ﹩9,559.00 95.2 172 1590 45.7 a
1200 445/7T 208-230/460 P6150 ﹩13,802.00 95.0 171 1798 49.21 a
900 449T 460 P8150 ﹩18,846.00 94.5 186 2520   a
200 3600 445/7TS 460 E2200 ﹩15,818.00 95.4 219 1730 45.71 b,e
1800 445/7T 460 P4200 ﹩12,704.00 95.2 230 2670 49.21 a
1200 449T 460 P6200 ﹩16,331.00 95.0 245 2508 53.24 a
900 449T 460 P8200 ﹩21,187.00 94.1 250 2900   a
250 3600 449TS 460 E2250 ﹩19,436.00 95.4 275 2424 49.48 a
1800 449T 460 P4250 ﹩16,075.00 95.0 272 2745 53.24 a
1200 449T 460 P6250 ﹩21,169.00 95.0 283 2973 53.24 a

a Inverter Duty 4:1 Constant Torque
b Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
e Meets EISA for Premium Efficiency
