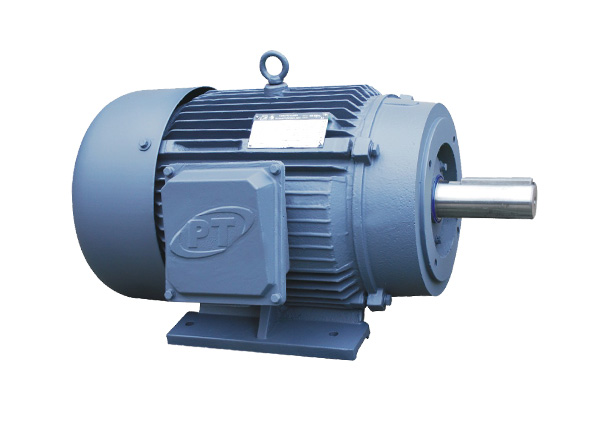

20-60HP Nema C Design Epact Motor

Special Purpose
TEFC, Three Phase, Design C,
EISA Compliant

Applications:
Any application that requires high torque design"C"
Characteristics, such as Crushers, Shakers etc.

Features:
Ball Bearings, 1.15 Service Factor, 230/460v and 460v
(1.0S.F @208v), Class F Insulation, Cast-Iron
Rated 60/50 Hz, 200/400 @ next lower horsepower
CSA, CE Certification, ISO 9001

HP RPM Frame Voltage Model Number List Price NOM EFF FL Amps@460V Approx Wt.(Lbs) “C”DIM Foot Notes
20 3600 256TSC 208-230/460 E220C ﹩2,141.30 91.0 24.2 298 25.2 b,e
1800 256TC 208-230/460 P420C ﹩1,670.95 91.0 24.5 325 25.2 a
1200 286TC 208-230/460 P620C ﹩2,923.30 90.2 26.6 385 28.35 a
900 324TC 208-230/460 P820C ﹩4,191.75 89.5 27.6     a
25 3600 284TSC 208-230/460 E225C ﹩2,650.75 91.7 29.4 350 25.48 b,e
1800 284TC 208-230/460 P425C ﹩2,178.10 92.4 30.8 423 26.85 a
1200 324TC 208-230/460 P625C ﹩3,324.65 91.7 32.7 531 30.39 a
900 326TC 208-230/460 P825C ﹩4,717.30 89.5 33.3 562   a
30 3600 286TSC 208-230/460 E230C ﹩2,799.10 91.7 33.9 384 26.98 b,e
1800 286TC 208-230/460 P430C ﹩2,462.15 92.4 36.4 357 28.35 a
1200 326TC 208-230/460 P630C ﹩3,903.10 91.7 37.4 560 31.88 a
900 364TC 208-230/460 P830C ﹩5,652.25 91.0 38.9 694   a
40 3600 324TSC 208-230/460 E240C ﹩3,605.25 92.4 45.7 560 28.89 b,e
1800 324TC 208-230/460 P440C ﹩3,161.35 93.0 48.5 592 30.39 a
1200 364TC 208-230/460 P640C ﹩4,850.70 93.0 49.1 790 33.07 a
900 365TC 208-230/460 P840C ﹩6,914.95 91.0 52.4 754   a
50 3600 326TSC 208-230/460 E250C ﹩4,528.70 93.0 57.2 650 30.38 b,e
1800 326TC 208-230/460 P450C ﹩3,953.70 93.0 59.6 512 31.88 a
1200 449TC 208-230/460 P650C ﹩6,360.65 93.0 60.1 820 34.06 a
900 404TC 208-230/460 P850C ﹩8,284.60 91.7 65.0 1033   a
60 3600 364TSC 208-230/460 E260C ﹩6,210.00 93.6 68.3 756 30.94 b,e
1800 364TC 208-230/460 P460C ﹩5,222.15 93.6 70.5 760 33.07 a
1200 404TC 208-230/460 P660C ﹩7,032.25 93.6 73.3 1030 39.37 a
900 405TC 208-230/460 P860C ﹩9,417.35 91.7 80.0 1183   a

a Inverter Duty 4:1 Constant Torque
b Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
e Meets EISA for Premium Efficiency
