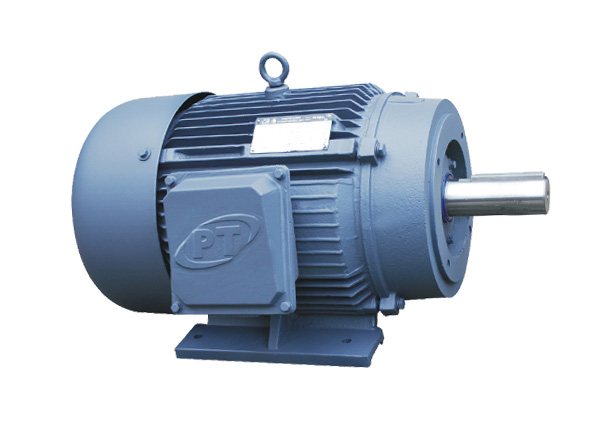

75-250HP Nema C Design Epact Motor

Special Purpose
TEFC, Three Phase, Design C,
EISA Compliant

Applications:
Any application that requires high torque design"C"
Characteristics, such as Crushers, Shakers etc.

Features:
Ball Bearings, 1.15 Service Factor, 230/460v and 460v
(1.0S.F @208v), Class F Insulation, Cast-Iron
Rated 60/50 HZ, 200/400 @ next lower horsepower
CSA, CE Certification, ISO 9001

HP RPM Frame Voltage Model Number List Price NOM EFF FL Amps@460V Approx Wt.(Lbs) “C”DIM Foot Notes
75 3600 365TSC 208-230/460 E275C ﹩7,437.05 93.6 85.4 804 31.93 b,e
1800 365TC 208-230/460 P475C ﹩6,038.65 94.3 87.5 830 34.06 a
1200 405TC 208-230/460 P675C ﹩7,370.35 94.3 92.0 1180 39.37 a
900 444TC 208-230/460 P875C ﹩13,754.00 93.0 95.0 1378   a
100 3600 405TSC 208-230/460 E2100C ﹩9,563.40 94.2 111 1007 36.37 b,e
1800 405TC 208-230/460 P4100C ﹩7,673.95 94.5 115 1150 39.37 a
1200 444TC 208-230/460 P4100C ﹩10,655.10 94.2 111 1395 43.7 a
900 445TC 208-230/460 P8100C ﹩14,816.60 93.0 131 1473   a
125 3600 444TSC 460 E2125C ﹩11,696.65 95.0 137 1366 39.95 b,e
1800 444TC 208-230/460 P4125C ﹩10,010.75 94.8 144 1305 43.7 a
1200 445TC 208-230/460 P6125C ﹩12,425.75 94.2 138 1420 45.7 a
900 445/7TC 208-230/460 P8125C ﹩19,037.10 93.6 154 1798   a
150 3600 445TSC 460 E2150C ﹩13,458.35 95.0 165 1496 41.95 b,e
1800 445TC 208-230/460 P4150C ﹩10,992.85 95.2 172 1590 45.7 a
1200 445/7TC 208-230/460 P6150C ﹩15,872.30 95.0 171 1798 49.21 a
900 449TC 460 P8150C ﹩21,672.90 94.5 186 2520   a
200 3600 445/7TSC 460 E2200C ﹩18,190.70 95.4 219 1730 45.71 b,e
1800 445/7TC 460 P4200C ﹩14,609.60 95.2 230 2670 49.21 a
1200 449TC 460 P6200C ﹩18,780.65 95.0 245 2508 53.24 a
900 449TC 460 P8200C ﹩24,365.05 94.1 250 2900   a
250 3600 449TSC 460 E2250C ﹩22,351.40 95.4 275 2424 49.48 a
1800 449TC 460 P4250C ﹩18,486.25 95.0 272 2745 53.24 a
1200 449TC 460 P6250C ﹩24,344.35 95.0 283 2973 53.24 a

a Inverter Duty 4:1 Constant Torque
b Inverter Duty 20:1 Variable Torque;10:1 Constant Torque
e Meets EISA for Premium Efficiency
